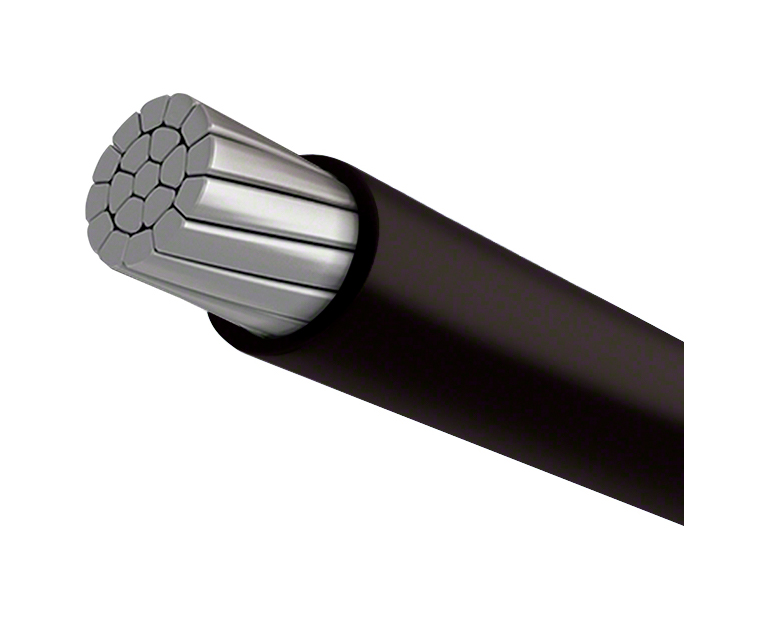

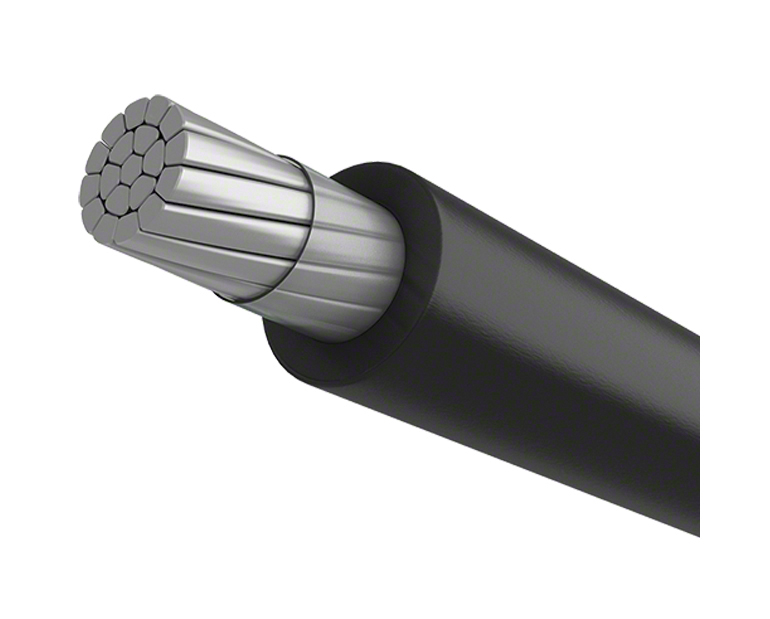

XHHW/XHHW-2 CT, XLPE Insulated, Cable Tray Rated, 600 V, Aluminum

You are here: Home / Catalog / Distribution
xhhw-al-std

Technical Data

Product Description

These cables are used for general purpose wiring in circuits not exceeding 600 volts.

May be used in wet or dry locations, installed in conduit, duct, open air.

Approved in accordance with requirements of the NEC®.

Standards:
UL 44 (Thermoset-Insulated Wires and Cables.)
ICEA S-95-658/NEMA WC70 (Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.)
ASTM B801 (Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation.)
Conductor:
Aluminum AA-8000 alloy compacted conductor, Class B stranding, per ASTM B801.
  • Sizes: 6 AWG – 1000 kcmil.
  • On request, larger sizes available.
Revision Date:
April 22, 2015
