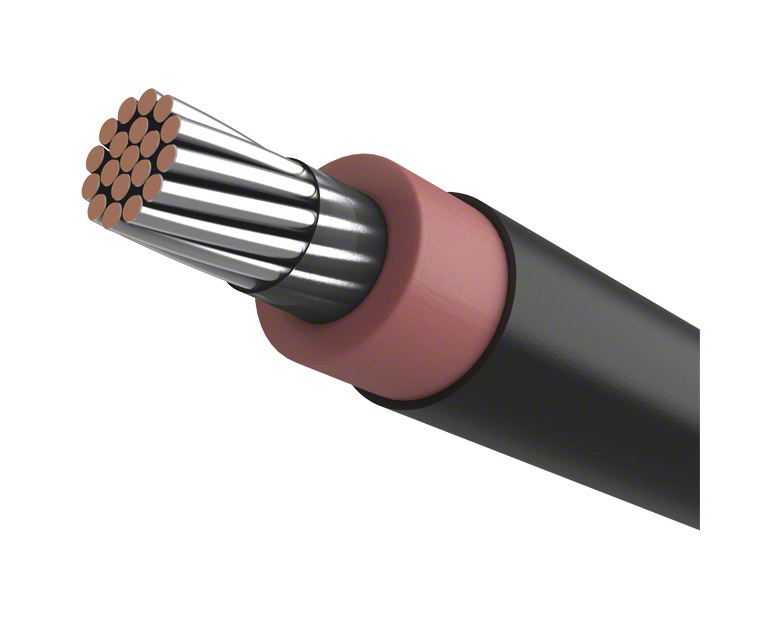

Photovoltaic Cable, XLPE Insulated, 600 V, 1000 V or 2000 V

You are here: Home / Catalog / Power & Control – Photovoltaic Cable
photovoltaic cable

Technical Data

Product Description

For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the NEC®, NFPA 70.

Standards:
UL 4703 (Outline of Investigation for Photovoltaic Wire)
UL 854 (Service-Entrance Cables.)
UL 44 (Thermoset-Insulated Wires and Cables.)
ICEA S-95-658/NEMA WC 70 (Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.)
ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)
ASTM B801 (Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation.)
Conductor:

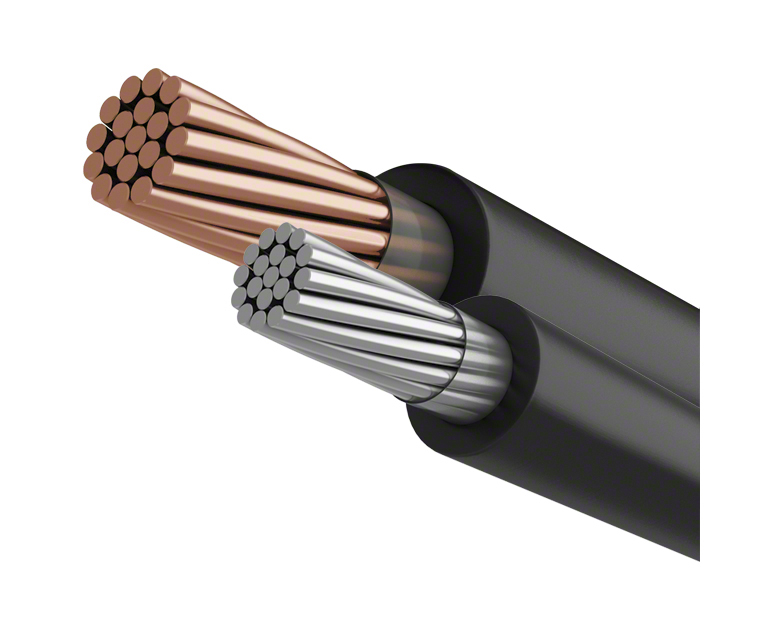

Soft annealed uncoated copper Class B compressed or unilay compressed per ASTM B8 or Aluminum AA-8000 alloy compacted conductor, Class B stranding, per ASTM B801.
    Sizes: 18 AWG (6 AWG Aluminum) – 1000 kcmil.
    On request, flexible or other strandings available.
Revision Date:
April 14, 2015
