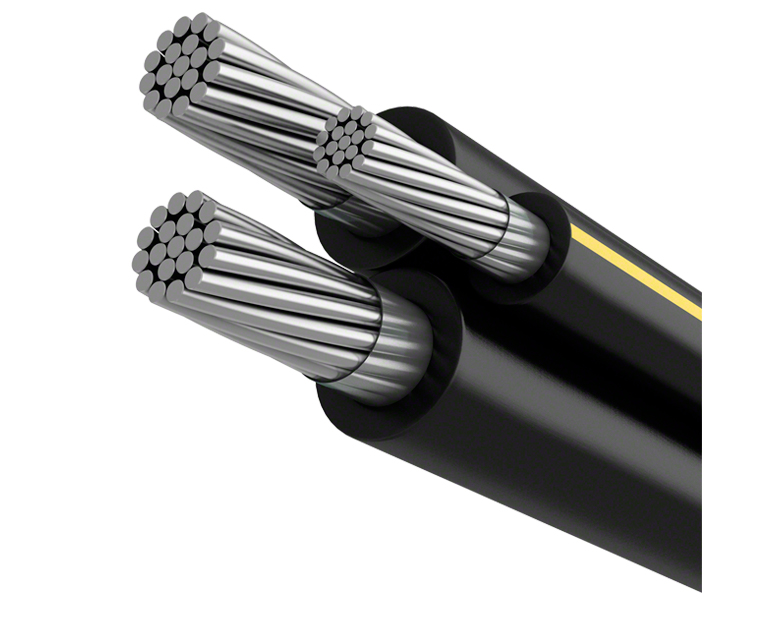

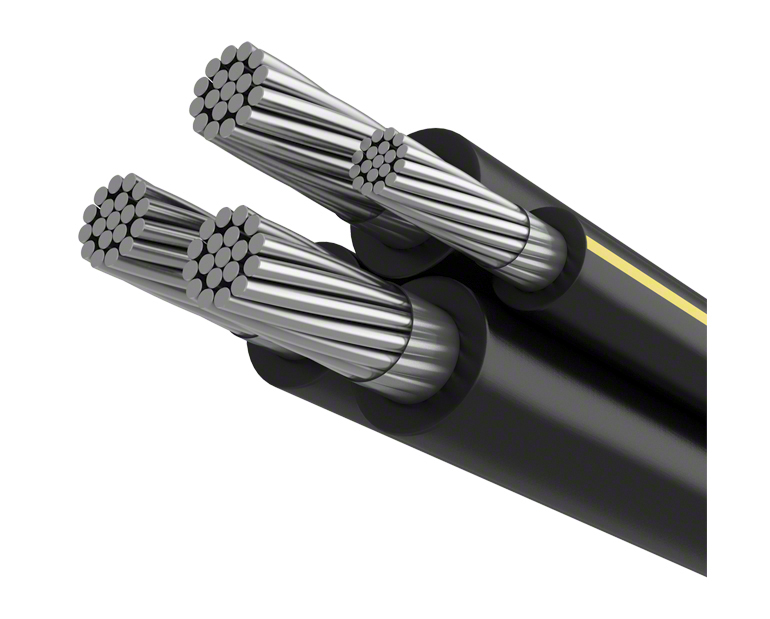

Secondary URD, XLPE Insulated, 600 V, Aluminum

You are here: Home / Catalog / Power & Control – Secondary URD Aluminum
secondary urd

Technical Data

Product Description

Used for secondary distribution and underground service at 600 volts or less.

May be used in ducts or direct burial.

Standards:
ICEA S-105-692 (600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables.)
UL 854 (Service-Entrance Cables.)
ASTM B231 (Concentric-Lay-Stranded Aluminum 1350 Conductors.)
ASTM B800 (8000 Series Aluminum Alloy Wire for Electrical Purposes - Annealed and Intermediate Tempers.)
ASTM B801 (Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation.)
Conductor:
Aluminum alloy 1350-H19, compressed Class B stranding, or unilay-compressed per ASTM B231.
  • On request, AA-8000 series aluminum alloy per ASTM B800 and B801 or copper conductors.
Revision Date:
January 12, 2015
