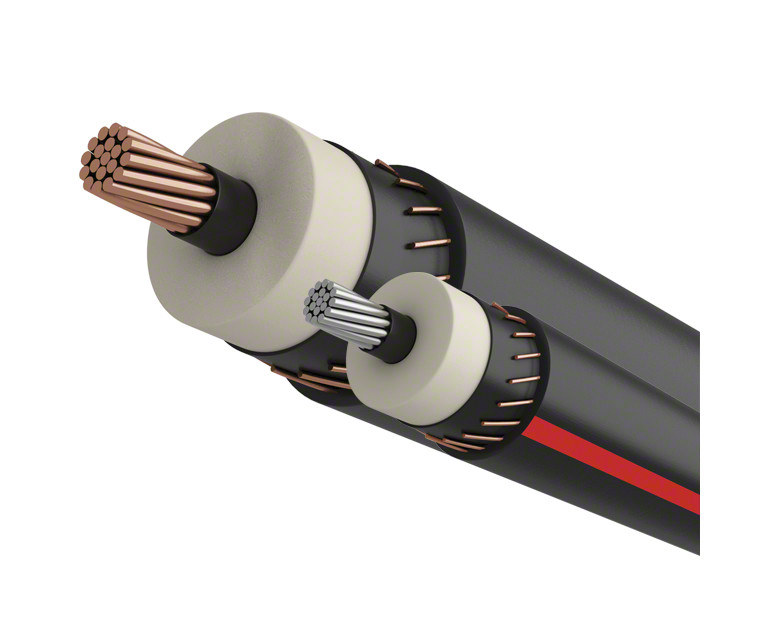

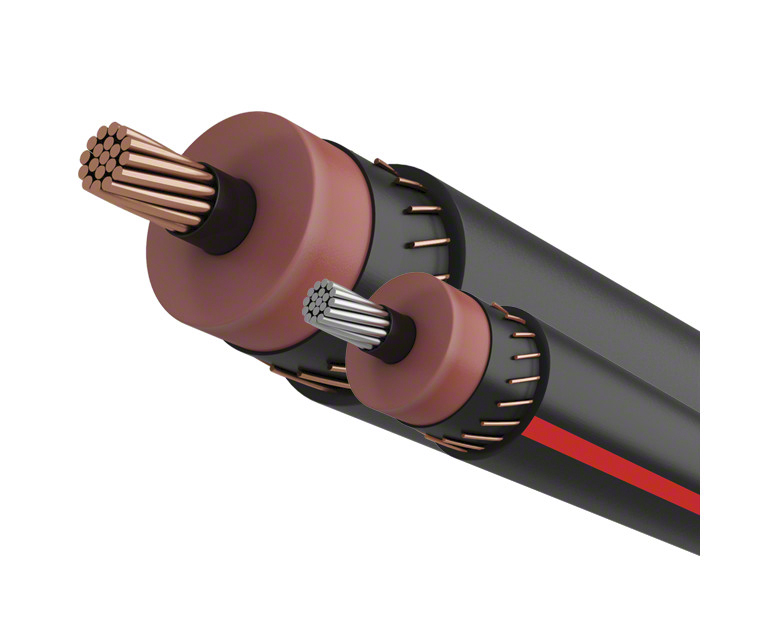

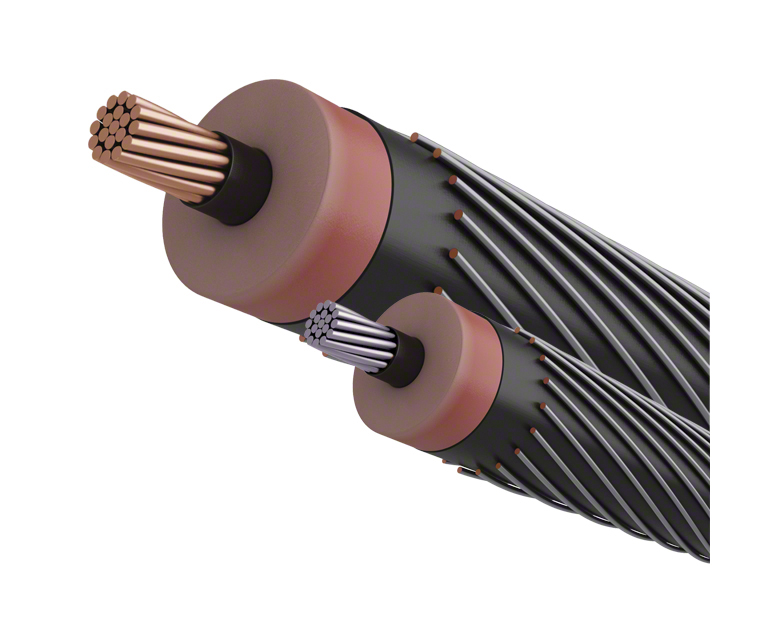

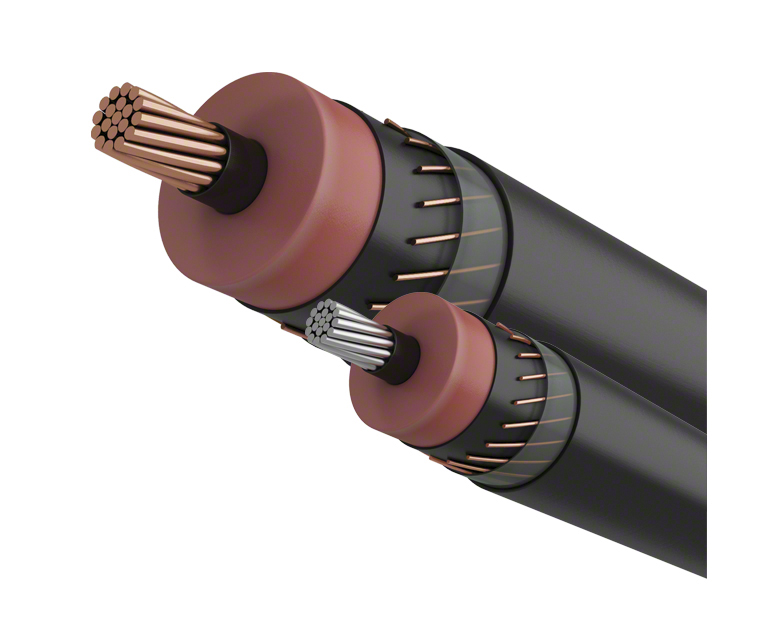

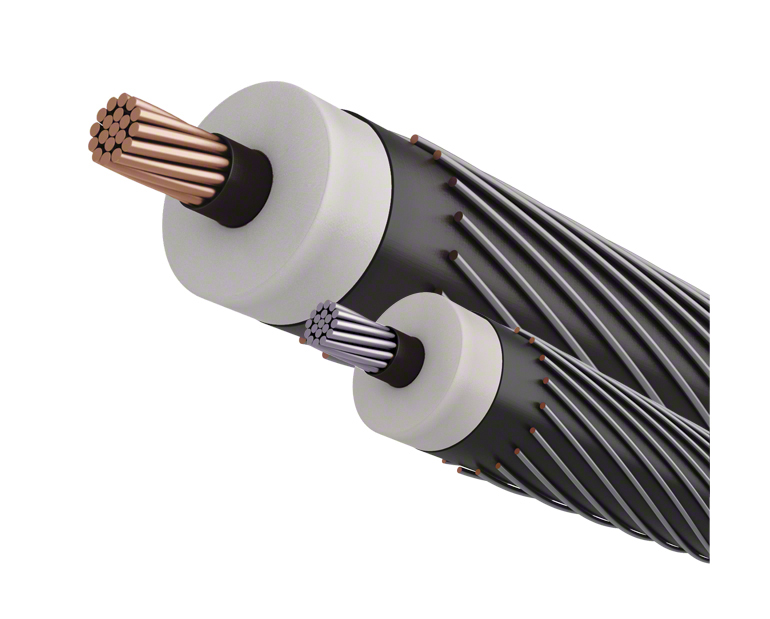

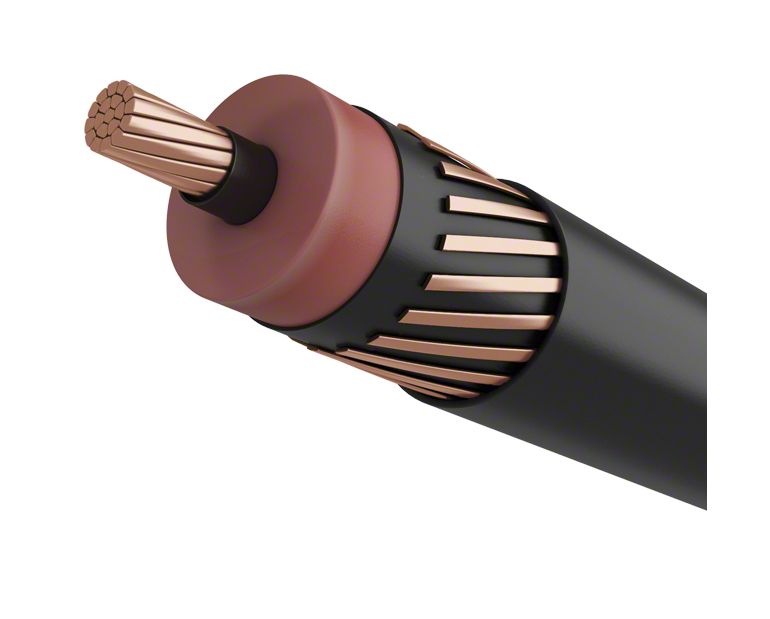

Primary UD EPR / LLDPE, Concentric Neutral, 5 kV – 46 kV

You are here: Home / Catalog / Power & Control – Primary UD
primary ud

Technical Data

Product Description

Underground primary residential and commercial distribution circuits.

May be used in wet or dry locations, installed in underground ducts or direct burial.

Standards:
ICEA S-94-649 (Concentric Neutral Cables Rated 5 Through 46 kV.)
AEIC CS8 (Extruded Dielectric, Shielded Power Cables rated 5 kV - 46 kV.)
ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)
ASTM B231 (Concentric-Lay-Stranded Aluminum 1350 Conductors.)
Conductor:
Soft annealed uncoated copper Class B compressed or unilay compressed per ASTM B8 or hard drawn aluminum Class B compressed or unilay compressed stranding per ASTM B231.
  • Sizes: 8 AWG – 1000 kcmil.
    • On request, larger sizes available.
    On request, strand filled.
Revision Date:
April 13, 2015
