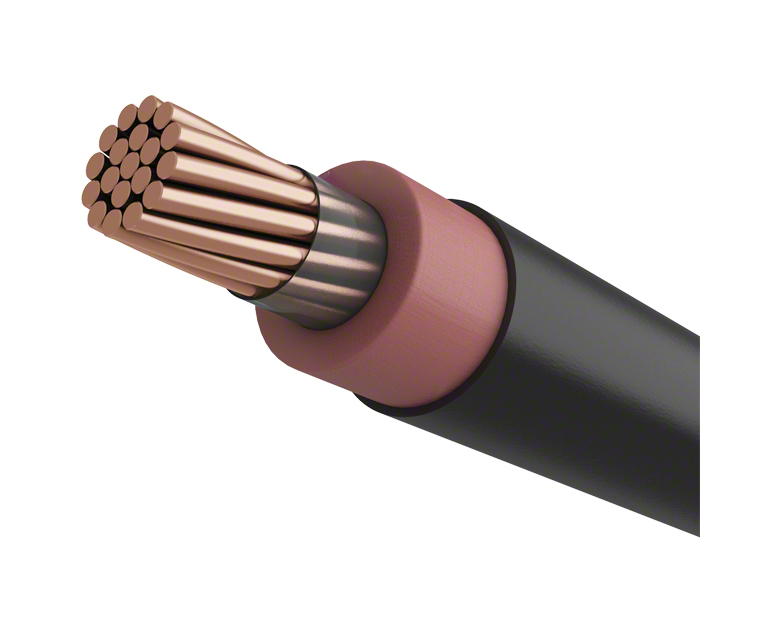

Traction Cable, EPR Insulated, XLPO Jacketed, 2000 V, LSOH Jacket, Copper

You are here: Home / Catalog / Power & Control – Traction Cable
medium voltage cable

Technical Data

Product Description

These cables are used for underground installation in non-metallic, concrete encased duct bank or pendant trapeze struts and supported by insulating clamps in substations.

Suitable for use in wet and dry locations, and to operate continuously at rated value temperature range of –40 °C to 90 °C.

Standards:
UL UL 44 (Thermoset-Insulated Wires and Cables.)
ICEA S-95-658/NEMA WC 70 (Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.) ICEA T-33-655 (Low-Smoke, Halogen-Fee [LSHR] Polymeric Cable Jackets.) ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)
Conductor:
Uncoated annealed Class B concentric stranded copper per ASTM B8.
    On request, coated copper wires.
Revision Date:
Jaurary 23, 2015
