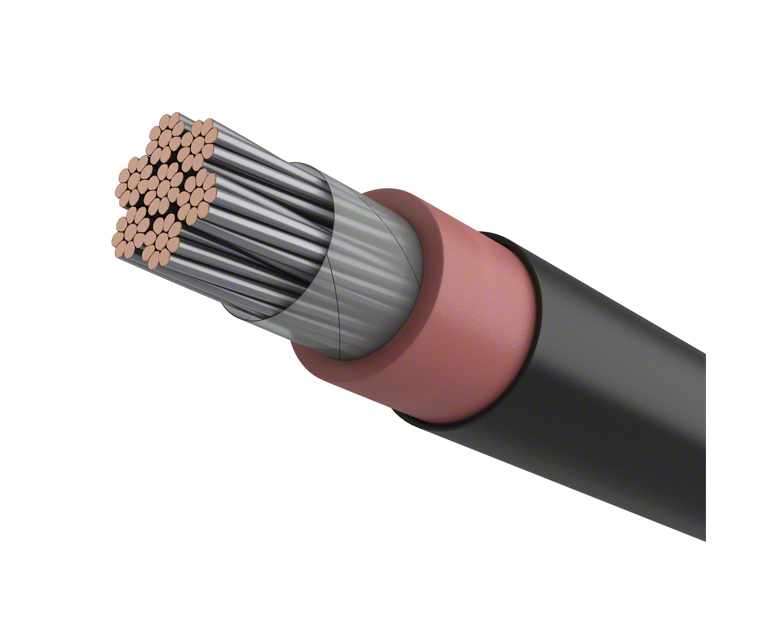

Diesel Locomotive Cable EPR Insulated, CPE Jacketed, 2000 V, Copper

You are here: Home / Catalog / Power & Control – Medium Voltage Cables/DLO
medium voltage cable

Technical Data

Product Description

As power cable used in DLO Locomotive Cable, railroad and transit car wiring where high reliability is required.

Also suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, batteries.

Standards:
AAR RP-588 (Locomotives and Locomotive Interchange Equipment Wire and Cable Insulating Material.)
UL 44/CSA C22.2 No. 38 (Thermoset-Insulated Wires and Cables.)
ICEA S-95-658/NEMA WC70 (Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.)
ASTM B3 (Soft or Annealed Copper Wire.)
ASTM B172 (Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Members, for Electrical Conductors.)
ASTM B174 (Bunch-Stranded Copper Conductors for Electrical Conductors.)
Conductor:
Soft annealed tinned coated copper conductor, flexible stranding per AAR RP-588, and ASTM B3, B172, B174 as applicable.
    Sizes: 14 AWG – 1111 kcmil.
    On request, uncoated copper wires.
Revision Date:
Jaurary 26, 2015
