Typical applications are for OEM equipment such as switchgear, transformers, etc.
Nonshielded cables are intended solely for use as factory-installed wiring in equipment (internal wiring), in industrial applications where such cable systems are maintained by trained personnel, not as type MV. These cables must be protected and are not to be in contact by personnel while energized.
Standards:
UL 2460 (Nonshielded Cable.) ICEA S-96-659/NEMA WC 71 (Nonshielded Cables Rated 2001 - 5000 Volts for use in the Distribution of Electric Energy.)
Conductor:
Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400.
Sizes: 8 AWG (6 AWG Aluminum) up to 1000 kcmil.
On request, strand filled or compressed strand.
On request, larger conductor sizes available.

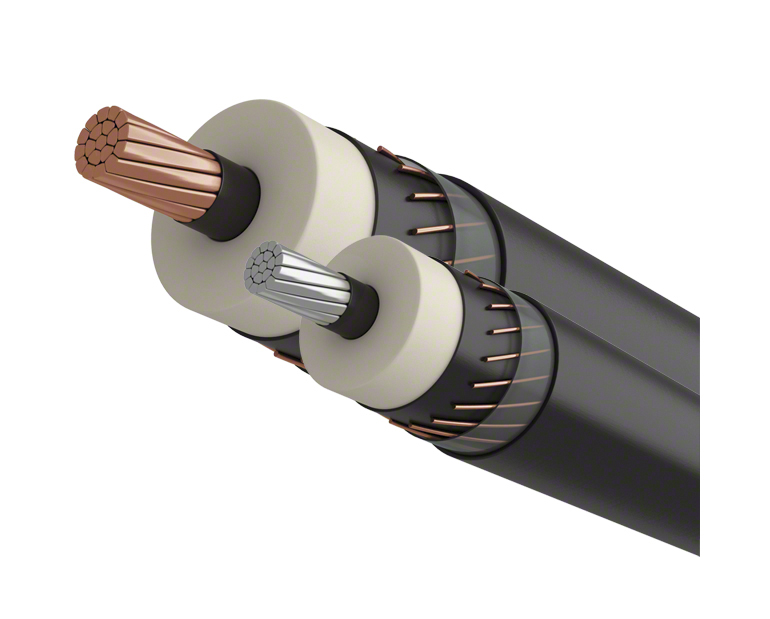

MV-90 XLPE Insulated, PVC Jacketed, 5 kV – 35 kV, Wire Shielded

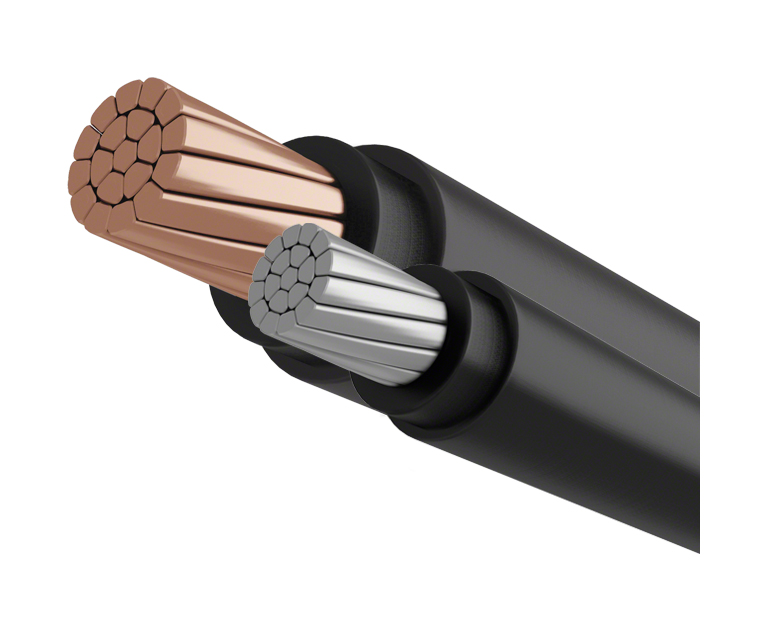

MV-90 XLPE Insulated, 2.4 kV, Nonshielded

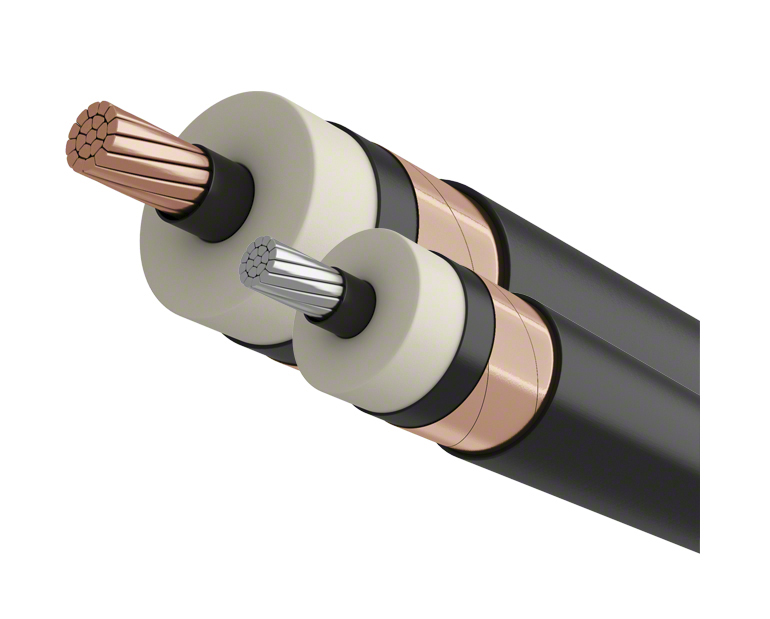

MV-90 XLPE Insulated, PVC Jacketed, 5 kV – 35 kV, Copper Tape Shielded

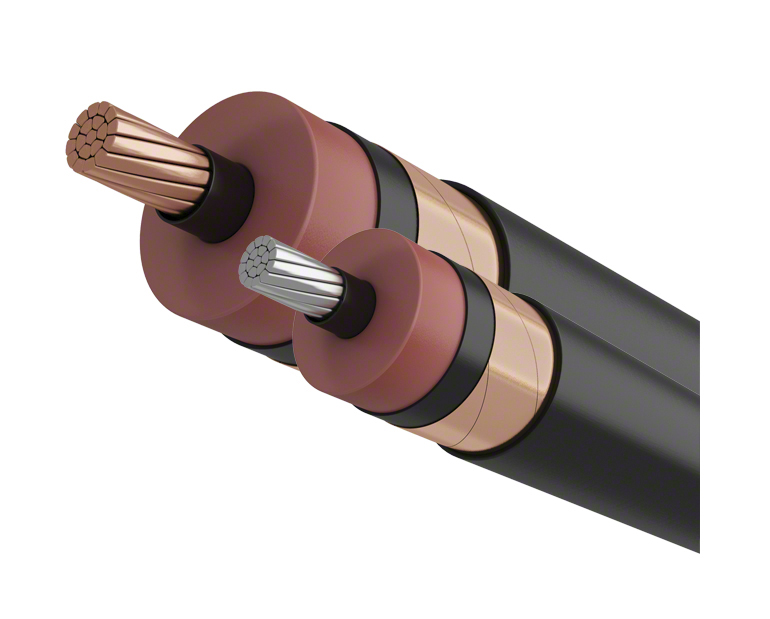

MV-105 EPR Insulated, PVC Jacketed, 5 kV – 35 kV, Copper Tape Shielded

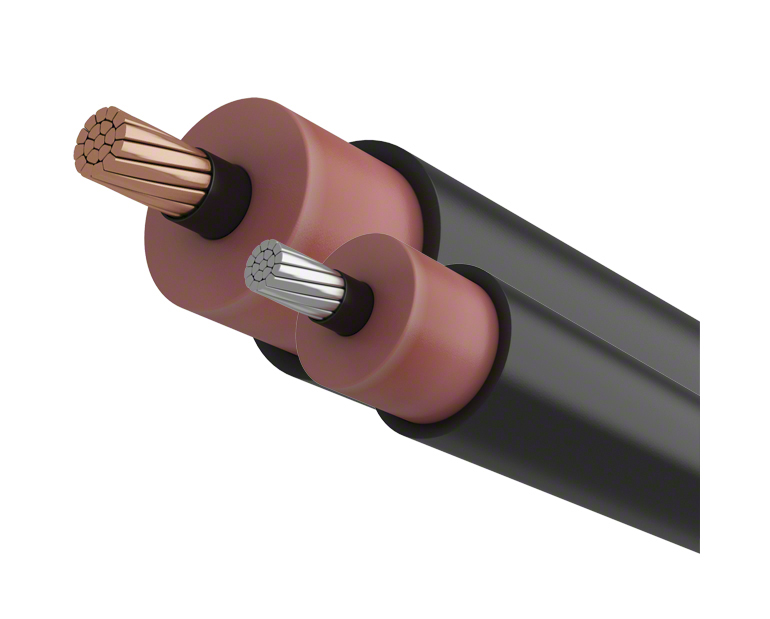

MV-105 EPR Insulated, CPE Jacketed, 5 kV – 35 kV, Copper Tape Shielded
MV-105 EPR Insulated, PVC Jacketed, 5 kV – 35 kV, Wire Shielded
MV-90 EPR Insulated, PE Jacketed, 5 kV – 35 kV, LC Copper Tape Shielded
