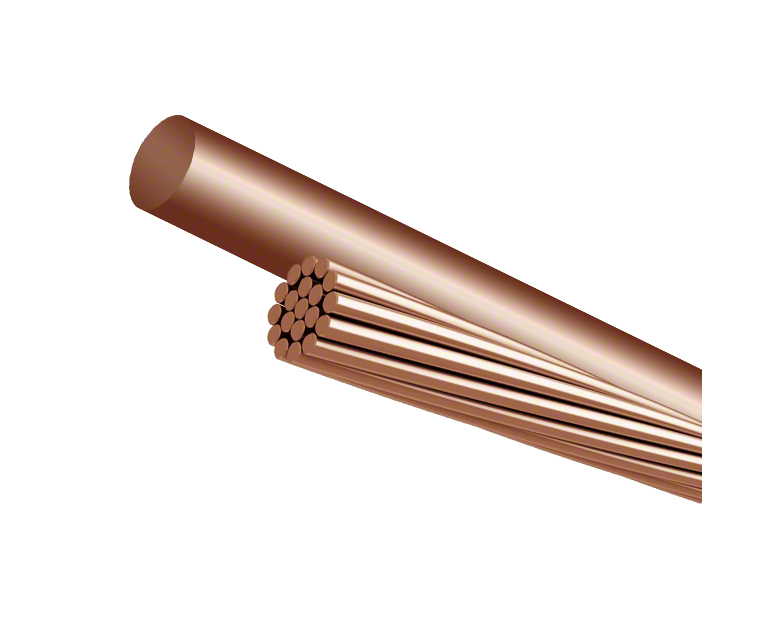

Bare Copper Conductor, Solid or Stranded Hard, Medium Hard, or Soft Drawn

You are here: Home / Catalog / Power & Control – Bare Copper
urd

Technical Data

Product Description

Bare Copper conductors are primarily used for grounding purposes as specified in the National Electrical Code

Soft-drawn solid or stranded conductors, for use as grounding connections in circuits, and grounding for machinery or equipment

Hard-drawn conductors for overhead transmission and distribution lines, as grounding connections in circuits, and grounding for machinery or equipment

Standards:
ASTM B1 (Hard-Drawn Copper Wire.)
ASTM B2 (Medium-Hard-Drawn Copper Wire.)
ASTM B3 (Soft or Annealed Copper Wire.)
ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)
Conductor:
Hard-drawn, Medium Hard-drawn or soft bare copper, Solid or Classes A or B stranding, per ASTM B1, B2, B3 and B8.
  • Sizes: Solid–14 AWG to 2 AWG.
    • Class A: 4 AWG to 1000 kcmil.
    Class B: 6 AWG to 2000 kcmil.
Revision Date:
July 31, 2014
